Give your audience the sound they deserve.

AeroWave by Ocean Way Audio is a premium horn-loaded solution for theaters, houses of worship, and mid-size venues; offering wide pattern control, punchy transient response, and in-your-face sound.

Ocean Way Audio AeroWave: Difference & Install Focus

Unique

The AeroWave Difference

Conventional line array solutions were designed to serve many different touring production requirements. Often these same systems are proposed for permanent installations, and in many cases, sound quality takes a back seat to compromises driven by truck pack size, weight, and other limitations placed on portable systems.

Fixed installations deserve better – solutions intended specifically for permanent use that avoid the compromises that confront speaker designers required to meet touring requirements.

Purpose-Built

Install-Focused

AeroWave is unique, as it was designed exclusively for permanent installations in medium-size venues up to 3000 seats, not for touring. As a result, our designers didn’t have to make compromises that negatively impact sound quality and coverage. AeroWave leverages proprietary technologies that give permanent venues the benefits of solutions designed without the need to serve the touring community.

The result is spectrally consistent, clear, and accurate sound — with even wideband coverage and superior dynamics across the entire listening area, delivering a consistent and natural sound quality experience unmatched by conventional solutions.

Learn More
Customer Testimonial Slider
Shayla-Vie Jenkins
"The clarity is unbelievable. It made my job so easy."

AeroWave allowed me to give an intimate show that’s so difficult to achieve in large halls... The coverage, oh my goodness, the point source system really did the job. I walked the space and heard no loss. Even in the balcony... insane.

Shayla-Vie Jenkins
Audio Engineer, Bill T. Jones Dance Company
Colin Campbell
"Incredible, audiophile-quality sound for every seat in the house."

I was blown away by the AeroWave’s ability to translate sonic detail. Other systems add coloration—this one doesn’t. When I put a vintage KM 84 on the flute, it sounded just like that throughout the house.

Colin Campbell
Production Manager, Third Coast Percussion
Jonah Verdon
"This system was so quick to configure, and everyone in the audience was able to get a little bit from every speaker."

I started tuning and was amazed at the high-end response. In Broadway shows, vocal sibilance is key for clarity, and AeroWave didn’t need aggressive processing to get there.

Jonah Verdon
Audio Engineer, Little Women

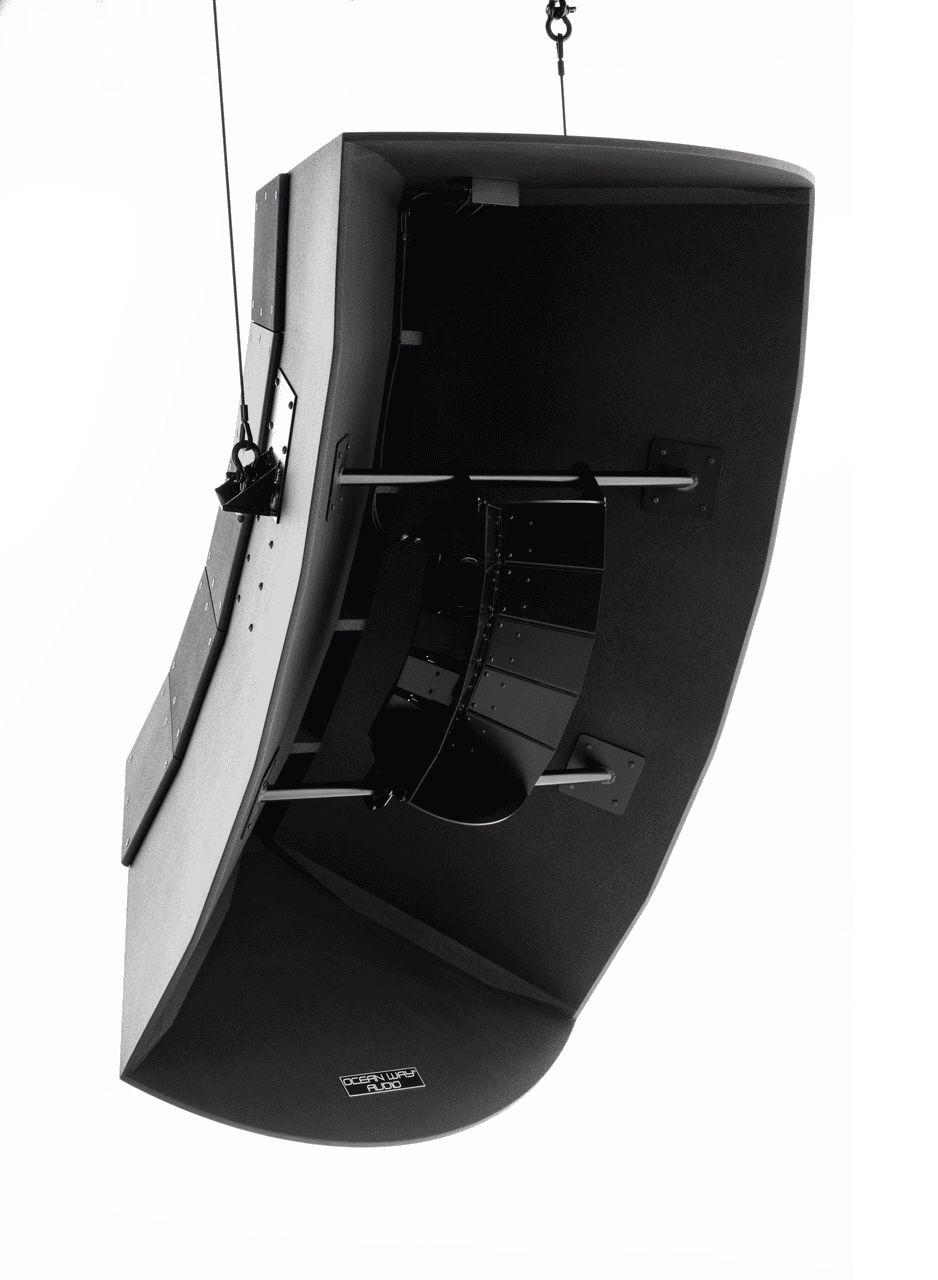

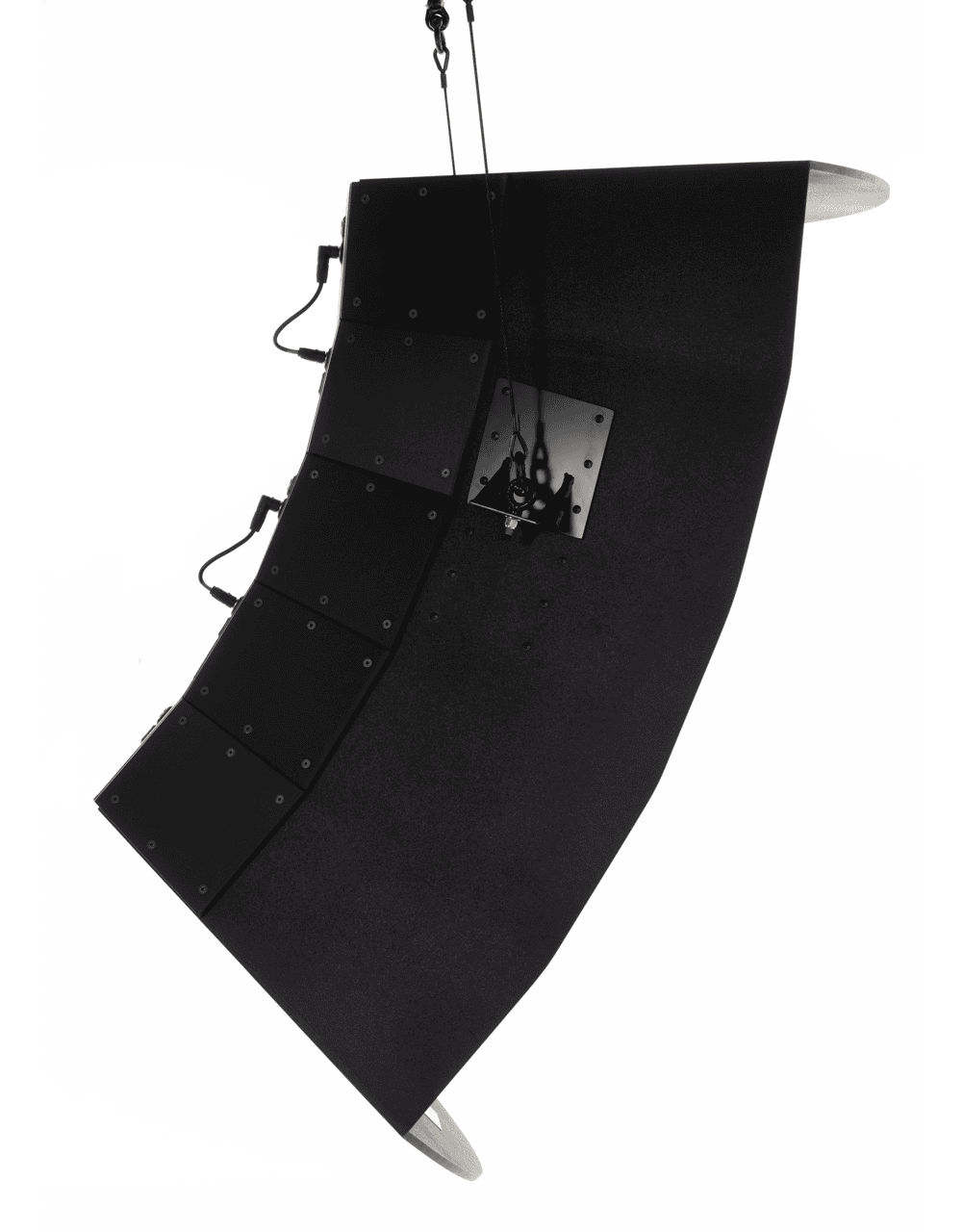

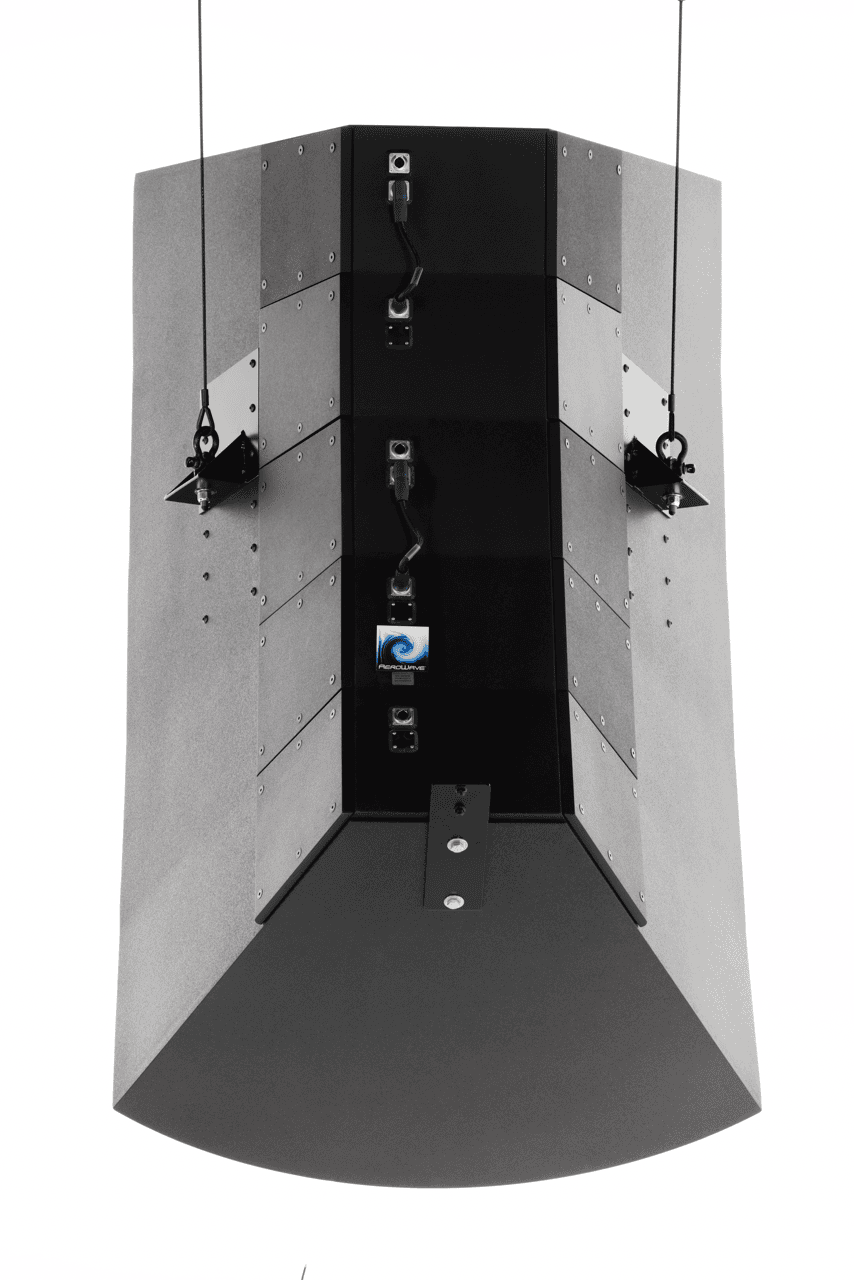

GALLERY

Image Gallery with Lightbox Navigation

"The 90 degree vertical coverage of AeroWave offers a compelling option, while simplifying the design process and drive system."
- David Williams, ProSoundWeb

Learn More
Book a demo

​​SPECIFICATIONS

Product Specifications

AW9090

Type of Device:Complete HF/LF horn system
Vertical Coverage:90°
Vertical Range:85Hz-20kHz
Horizontal Coverage:90°
Horizontal Range:280Hz-20kHz
Frequency Range:40Hz-20kHz
LF Power Handling:12000W
LF Power Gain:40.8dB
HF Power Handling:2400W
HF Power Gain:33.8dB
LF Drivers:(20) 10” cone
HF Drivers:(30) 1” Exit CD
Subwoofer:S218AW (2) 18”
Typical Sub XO:80Hz
Dimensions:176”H x 48”W x 58”D
Weight:950 lbs.

AW9045

Type of Device:Complete HF/LF horn system
Vertical Coverage:45°
Vertical Range:317Hz-20kHz
Horizontal Coverage:90°
Horizontal Range:280Hz-20kHz
Frequency Range:70Hz-20kHz
LF Power Handling:6000W
LF Power Gain:37.8dB
HF Power Handling:1200W
HF Power Gain:30.8dB
LF Drivers:(10) 10” cone, horn
HF Drivers:(15) 1’ Exit CD
Subwoofer:S218AW (2) 18”
Typical Sub XO:80Hz
Dimensions:87”H x 48”W x 37”D
Weight:450 lbs.


AW9090

AW9045

Type of Device:

Complete HF/LF horn system

Complete HF/LF horn system

Coverage Vertical:

90°

45°

Range of Vertical*:

85Hz-20kHz

317Hz-20kHz

Coverage Horizontal:

90°

90°

Range of Horizontal*:

280Hz-20kHz

280Hz-20kHz

Frequency Range:

40Hz-20kHz

70Hz-20kHz

LF Power Handling:

12000W

6000W

LF Power Gain:

40.8dB

37.8dB

HF Power Handling:

2400W

1200W

HF Power Gain:

33.8dB

30.8dB

LF Drivers:

(20) 10” cone

(10) 10” cone, horn

HF Drivers:

(30) 1” Exit CD

(15) 1’ Exit CD

Subwoofer:

S218AW (2) 18”

S218AW (2) 18”

Typical Sub XO:

80Hz

80Hz

Dimensions:

176”H x 48”W x 58”D

87”H x 48”W x 37”D

Weight:

950 lbs.

450 lbs.


DOWNLOADS

9045 Spec Sheet
9090 Spec Sheet
GLL File
